CE FCC RoHS Electronic Surface Mount PCB Assembly

Shenzhen Shinelink Technology Ltd

CE FCC RoHS Electronic Surface Mount PCB Assembly

Brand Name : OEM/ODM

Model Number : SL00710S01

Certification : UL, Rohs

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 5000 Piece/Pieces per Day

Delivery Time : 7-12 days

Packaging Details : ESD Bag

Copper thickness : 1oz,1/2OZ 1OZ 2OZ 3OZ

Base material : FR-4

Board thickness : 0.5~3.2mm

Min. line spacing : 4/4mil(0.1/0.1mm)

Min. line width : 0.075mm/0.075mm(3mil/3mil)

Min. hole size : 0.20mm,4mil

Surface finishing : HASL,ENIG

Product name : PCB Assembly

Application : Consumer Electronics

Pcb assembly method : SMT

Contact Now

One Stop Turn Key CE FCC RoHS Electronic Surface Mount PCB Assembly

This PCBA Board is assembled with FR - 4 made bare pcb board and the board thickness is 1.6 mm, copper thickness is normally 1OZ / 35 µm. Immersion gold surface treatment make the PCBa work longer and more eco-friendly. We need Gerber File & BOM List to produce your PCBa assembly order.


Files Requested For PCB Assembly Quotation


---In order to provide you with the most efficient and accurate quote on manufacturing the requested unit, we ask that you provide us with the following information.
1. Gerber file,PCB file,Eagle file or CAD file are all acceptable
2. A detailed bill of materials (BOM)
3. Clear pictures of PCB or PCBA sample for us
4. Quantity and delivery required
5. Test method for PCBA to guarantee 100% good quality products.
6. Schematics file for PCB design if need to do function test.
7. A sample if available for better sourcing
8. CAD files for enclosure manufacturing if required
9. A complete wiring and assembly drawing showing any special assembly instructions if required

Shinelink kinds PCBA product

CE FCC RoHS Electronic Surface Mount PCB Assembly



94V0 PCBA manufacture Scale capabilities up to

We combine advanced processes with highly skilled resources. Keeping up with the leading advanced technology and management system in One-stop services of PCB assembly

SMT process (RoHs Compliant) Capabilities up to:

1. 0201 Chip Size
2. 12 mils Integrated Circuit (IC) Pitch
3. Micro Ball Grid Array (BGA) – Pitch 16 mils
4. Flip Chip (Controlled Collapse Chip Connection) – Pitch 5 mils
5. Quad Flat Package (QFP) – Pitch 12 mils

THT(Wave soldering) process (RoHs Compliant) Capabilities up to:

1.Single side wave soldering

2.SMT & THT mixture process

CE FCC RoHS Electronic Surface Mount PCB Assembly


PCB Assembly Capabilities

Turnkey PCBA PCB+components sourcing+assembly+package
Assembly details SMT and Thru-hole, ISO lines
Lead Time Prototype: 15 work days. Mass order: 20~25 work days
Testing on products Flying Probe Test, X-ray Inspection, AOI Test, functional test
Quantity Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files we need PCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
PCB panel Size Min size: 0.25*0.25 inches(6*6mm)
Max size: 20*20 inches(500*500mm)
PCB Solder Type Water Soluble Solder Paste, RoHS lead free
Components details Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component package Cut Tape,Tube,Reels,Loose Parts
PCB assembly
process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing

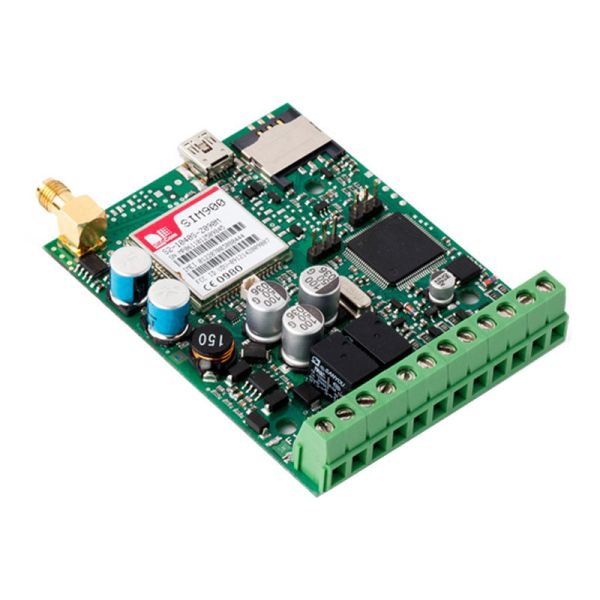

PCBA Picture

CE FCC RoHS Electronic Surface Mount PCB Assembly

FAQ:

1. How do Shinelink ensure quality?

Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe, X-ray Inspection, AOI (Automated Optical Inspector) and ICT (in-circuit testing).
1.4.Dedicated quality assurance team with failure case analysis process
1.5.Continuous staff training and education

2. How do Shinelink keep your price competitive?

Over the last decade, prices of many raw materials (e.g. copper, chemicals) had doubled, tripled or quadrupled; Chinese currency RMB had appreciated 31% over US dollar; And our labor cost also increased significantly.

However, O-Leading have kept our pricing steady. This owns entirely to our innovations in reducing cost, avoiding wastes and improving efficiency. Our prices are very competitive in the industry at the same quality level.

We believe in a win-win partnership with our customers. Our partnership will be mutually beneficial if we can provide you an edgeon cost and quality.
